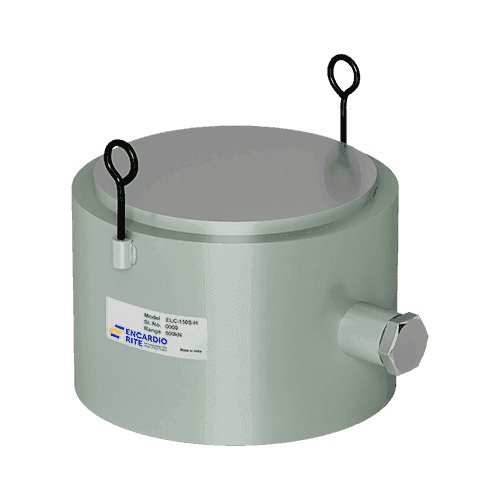

High Capacity Solid Load Cell

View Related Products

ELC-150S-H is a resistive strain gage type load cell. It is designed to measure large compressive load or axial forces. The load cell is used extensively in pile testing. This load cell is similar to the ELC-210S. It has great resistance to extraneous forces and is protected against dust, moisture, and adverse environmental conditions. This increases the fatigue life, permits a less stringent mounting alignment and reduces the possibility of reading error.

Compare Our Products

Instrument Name

Compression load cell

Sensor Type

Resistive strain gage, high capacity


16 gages mounted to reduce positioning effect


To measure compressive load, axial forces in struts, load testing in piles




5000, 6000, 7500, 10000, 12500 kN

Key Testing / Calibration

Accuracy test, Overload test

Key Feature/Advantage

Great resistance to extraneous forces, long fatigue life, protected against dust, moisture and adverse environmental conditions

Protection (Waterproofing)

IP-68, water resistant up to 10 mwc

Dimension (mm)

Depends on range

Other Load Cell Products


Center Hole Load Cell

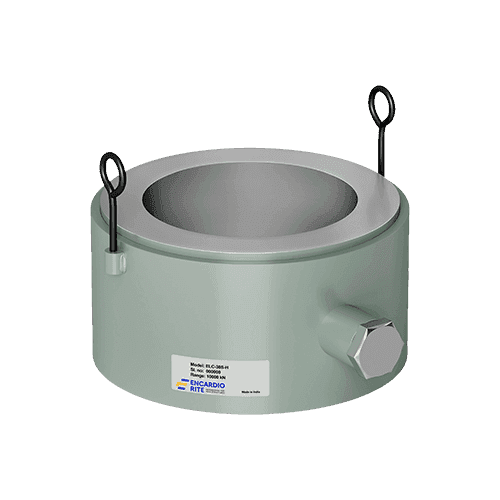

High Capacity Center Hole Load Cell

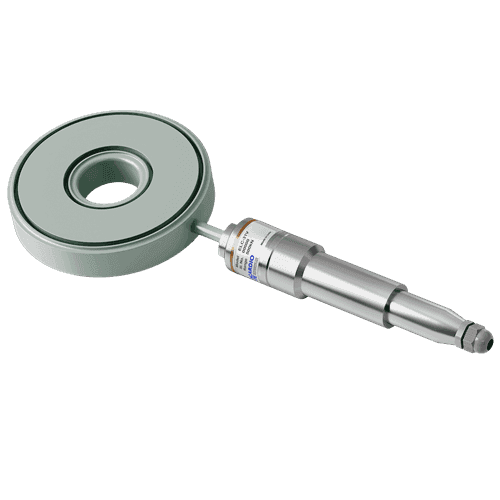

Hydraulic Center Hole Load Cell
