Plumbline

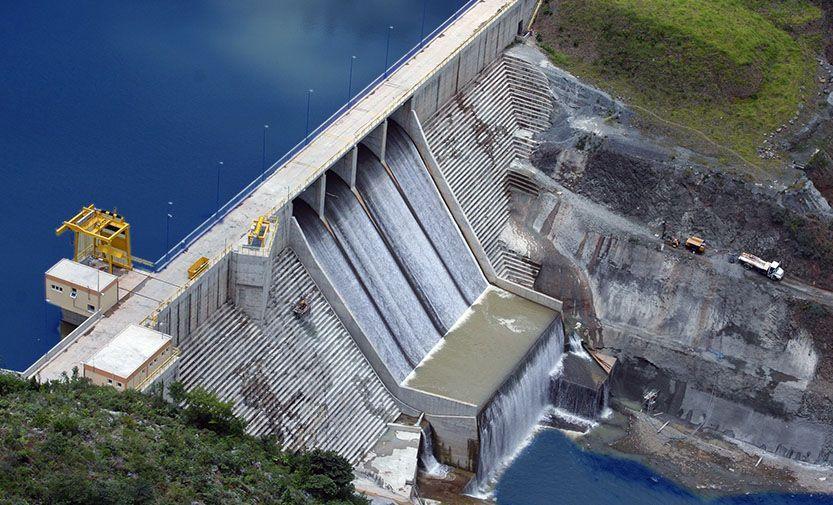

Encardio-rite normal and inverted plumb lines are simple and reliable systems that are widely used in civil engineering projects where highly accurate long-base rotation/tilt/relative displacement measurements are needed, like in high-rise buildings, concrete and masonry dams, nuclear plants, etc.

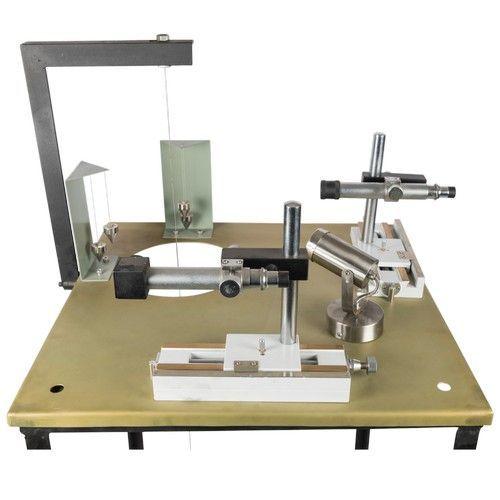

The Plumbline model EDS-50/51, EPR-01S is used for monitoring tilt of tall structures or high-rise buildings and for measuring and monitoring relative displacement in concrete or masonry dams. The EPR-01S automatic readout device provides an accuracy of 0.01 mm and uses contactless inductive sensors to determine the position of the pendulum wire in two directions. It has a measuring range of ±40 mm and operates in temperatures ranging from -25°C to +70°C. The system is equipped with a temperature gauge for temperature compensation and has an IP67 protection rating.
