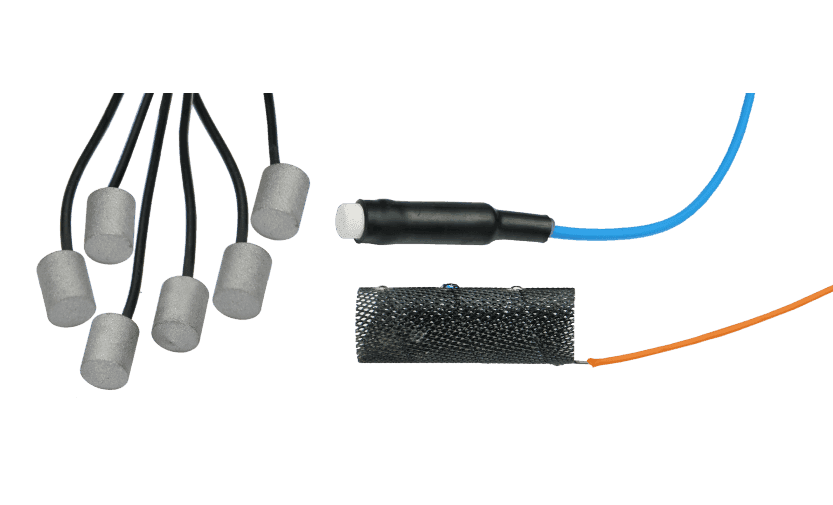

Model ECS-101 Corrosion Monitoring System

Model ECS-101 corrosion monitoring system provides an accurate and easy-to-use online monitoring solution to assist in detecting and reporting the occurrence of corrosion over time and take preventive action in time. With embedded sensors, accurate information about the in-situ durability parameters of concrete structures, such as corrosion current density, concrete resistivity, temperature and concentration of chloride ions, can be monitored and diagnostic information provided.

Model ECS-101 corrosion monitoring system is a scalable system. Various solutions are available for small as well as large structures. Please contact factory for an optimized cost effective solution to suit project requirement.

Applications

Encardio Rite ECS-101 is a system for measuring current corrosion state of the structure under monitoring and its corrosion rate. It can be used to monitor corrosion in:

• Bridge decks and underground parking garages heavily influenced by de-icing salt
• Structural elements in public swimming pools, amusement parks
• Inaccessible areas e.g. in tunnels and bridges in the corrosive marine environment
• Structures under influence of acid rain, e.g. chimneys, funnels, and smokestacks etc.

It’s capable of working in standalone mode; however it’s generally used at a number of locations on the structure to be monitored, as it gives a better idea of concrete health of the entire structure and provides critical information about corrosion and serves as an early warning system that is necessary for structural health.
