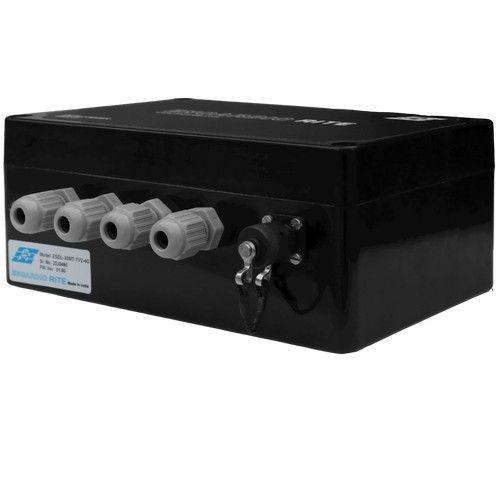

Tiltmeter with Automatic Data Logger

View Related Products

ESDL-30MT wireless tilt meter consists of one uniaxial or biaxial MEMS tilt sensor mounted inside an automatic SDI-12 digital interface datalogger. It is a complete unit in itself to monitor tilt at any location. It features a wide operating temperature range, dependable stand-alone operation, low power consumption, compatibility with many telecommunication options and flexibility to support a variety of measurement and control applications. All the measured data is stored, together with the current date, time and battery voltage, as data record in the internal non-volatile memory of the datalogger and can be transferred to a remote server/PC through GSM/GPRS service.

Compare Our Products

Instrument Name

Wireless tilt meter

Sensor Type

Digital MEMS (SDI-12), biaxial


Box type, with GSM/GPRS communication, in-built datalogger


Remote tilt monitoring of structures like buildings, dams, tunnel, retaining walls, etc




± 15°

Key Testing / Calibration

Accuracy test, individually calibrated, providing high accuracy & repeatability

Key Feature/Advantage

With GSM/GPRS modem, in-built datalogger with large memory, long batery life for standalone operation,

Protection (Waterproofing)

Corrosion resistant weather proof enclosure

Dimension (mm)

120 x 122 x 90 (LxWXH)
