Sripada Sagar Yellampalli Irrigation Project

Sripada Sagar Yellampalli Irrigation Project in Telangana features a 26.3 m high earth dam with 62 radial-lift gates and 20 tmcft reservoir capacity. Encardio-rite provided comprehensive safety monitoring instrumentation for the dam and concrete spillways. Instruments included foundation and embankment piezometers, uplift pressure cells, strain meters, earth pressure cells, joint meters, borehole extensometers, magnetic settlement systems, seepage measurement, weather stations, and strong motion accelerometers. Data is accessible online via Encardio-rite’s monitoring software, ensuring real-time safety assessment.

Sripada Sagar Yellampalli Irrigation Project

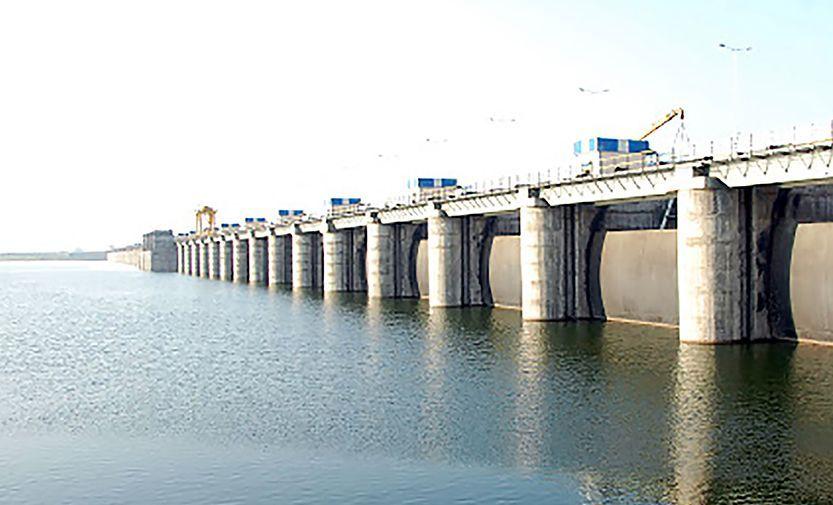

Sripada Yellampally Project is situated at Yellampally Village, Karimnagar District of Telangana state, across the River Godavari. It is an earth dam with concrete spillways, consisting of 1180.7 m long and 26.3 m high, with 62 (radial-lift gates) spillways, having a total 20 tmcft reservoir capacity. The dam is used for the purpose of irrigation and power generation.

Encardio-rite was awarded the sub-contract for the supply as well as installation of safety monitoring instrumentation for the earth dam and concrete spillways. The data from the monitoring instruments were available online on Encardio-rite’s web-based online monitoring software. The instrumentation included:

Spillway section

  • Piezometer – foundation and embankment
  • Uplift pressure cells
  • Strain meter – rosette with no stress strain meter
  • Earth pressure cell
  • Water level sensors
  • Joint meter
  • Temperature meter
  • Borehole extensometer - multipoint
  • Magnetic settlement system – vertical
  • Magnetic settlement system – horizontal
  • Seepage measuring system
  • Plumbline – normal and inverted
  • Topographical markers
  • Portable readout units
  • Data acquisition system
  • Automatic weather station
  • Strong motion accelerometers
Project DetailsSripada Sagar Yellampalli Irrigation Project
LocationYellampalli, Telangana, India
ClientIrrigation & CAD Department, Govt. of Telangana
ContractorITD Cementation
