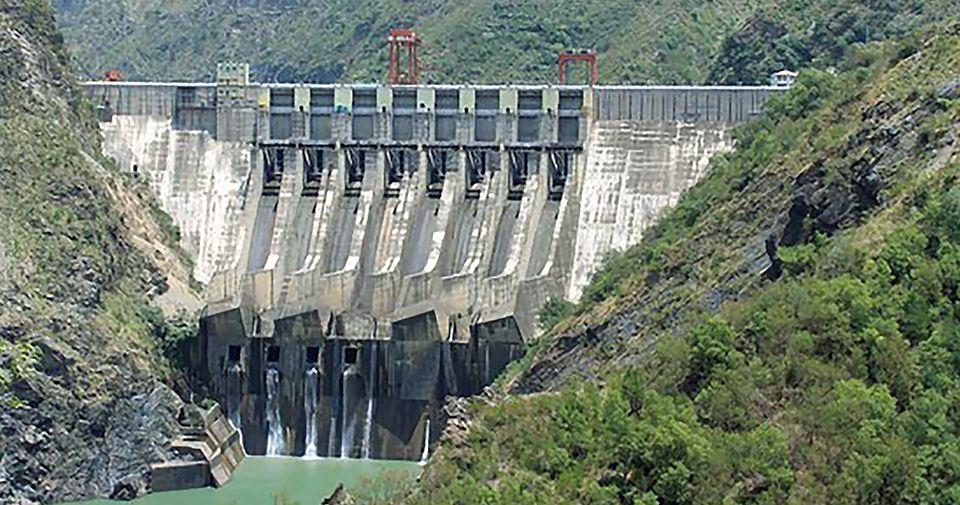

Chamera Hydroelectric Project

Chamera Hydroelectric Project, spanning Chamera-II and Chamera-III, utilizes cutting-edge geotechnical monitoring from Encardio Rite. This includes vibrating wire piezometers, borehole extensometers, and more, ensuring the structural health of the dams and powerhouses for efficient, long-term operations.

Chamera Hydroelectric Project

Chamera HEP is constructed on the river Ravi. It is located in the Chamba district of Himachal Pradesh.

Encardio-rite provided a risk assessment monitoring solution for Chamera II and Chamera III.

Chamera-II project comprises of a 43 m high, 118.5 m long concrete gravity dam with 7.0 m dia., a 7.86 km long head race tunnel. The underground power house with an installed capacity of 300 MW houses 3 units of 100 MW capacity each, designed to operate under the net rated head of 243 m and designed to generate 1499.89 million units in a 90% dependable year with 95% machine availability.

Chamera-III project comprises of a 64 m high, 73 m long concrete gravity dam with a 6.5 m dia., a 15.97 km long head race tunnel. The underground power house with an installed capacity of 231 MW houses 3 units of 77 MW capacity each, designed to operate under the net rated head of 200 m and designed to generate 1086.37/1108.17 million units in a 90% dependable year with 95% machine Availability.

Encardio-rite was awarded the complete instrumentation contract (supply and installation) for the State II and Stage III of the project, from the respective Contractors:

  • Chamera II HEP: Concrete Gravity dam, penstock, power station
  • Chamera III HEP: Concrete gravity dam, HRT, and power house

Instrumentation supplied and installed included:

  • Vibrating wire piezometer
  • Three-point electronic borehole extensometer
  • Three-point mechanical borehole extensometer
  • Stand pipe (casagrande) piezometer
  • Water level indicator
  • Water seepage measurement system
  • Vibrating wire centre hole load cell
  • Readout unit for vibrating wire sensors
  • Data acquisition system
Project DetailsChamera Hydroelectric Project
LocationChamba, Himachal Pradesh, India
ClientNHPC
ContractorJaiprakash for Concrete Gravity dam, penstock (Chamera II)
Year2002-2012
