Baglihar Dam

Baglihar Dam, located on the Chenab River in Jammu & Kashmir, is a 900 MW hydropower project with an underground powerhouse. Encardio Rite provided essential geotechnical monitoring instruments, including vibrating wire piezometers, pressure cells, and borehole extensometers, ensuring the dam’s safety and structural integrity with real-time monitoring.

Baglihar Dam

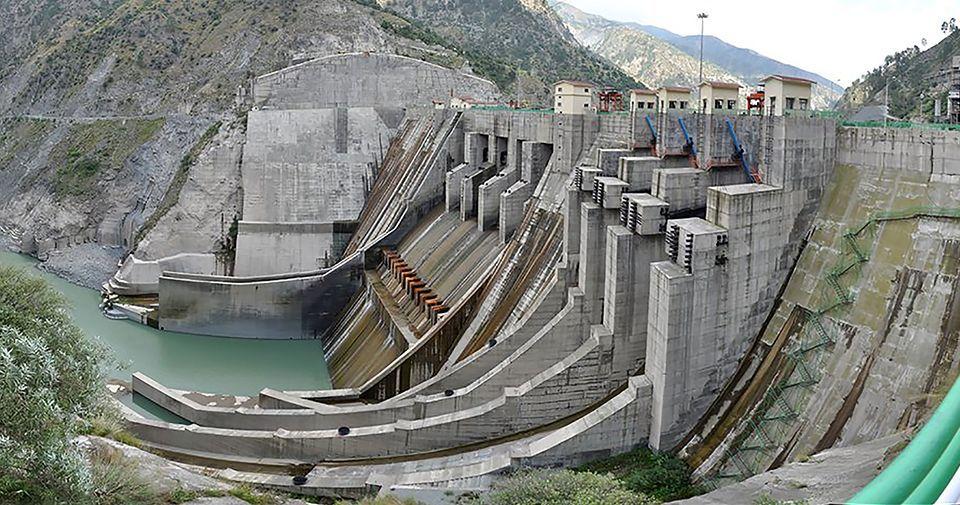

The Bahlihar Hydropower Project is located on the Chenab River in the northern Indian state of Jammu & Kashmir. It consists of a gravity concrete dam 144.5 m high and 363 m long, which has a total volume of 1.9 million m³, creating a reservoir with a capacity of 475 million m³. The underground powerhouse is 221 m long, 24 m wide, and 51 m high. Six Francis turbines, each with a capacity of 150 MW, produce a total capacity of 900 MW, utilizing a gross head of 130 m.

Encardio-rite was awarded the complete contract for supply as well as installation of safety monitoring instrumentation for the project,t including:

  • Vibrating wire piezometer
  • Vibrating wire pressure cells
  • Seepage measuring device
  • Water level indicator
  • Four-point mechanical borehole extensometer
  • Three-point mechanical borehole extensometer
  • Three-point electronic borehole extensometer
  • Vibrating wire joint meter
  • Uplift pressure meter
  • Normal & inverted pendulum
  • Tilt meter
  • Thermistor probe
  • Tape extensometer with groutable anchors and calibration frame, etc.
  • Rock bolt load cell -vibrating wire type
  • Readout units
  • Data acquisition system
Project DetailsBaglihar Dam
LocationRamban, India
ClientJammu & Kashmir State Power Development Corporation (JKSPDC), Srinagar/Jammu, India
ContractorJaiprakash Associates Ltd., for all civil and hydromechanical works, on an EPC basis.
ConsultantsI.M. Sahai
Year1999-2008
